Self-propelled platform lui 460 H work 6.65 mt

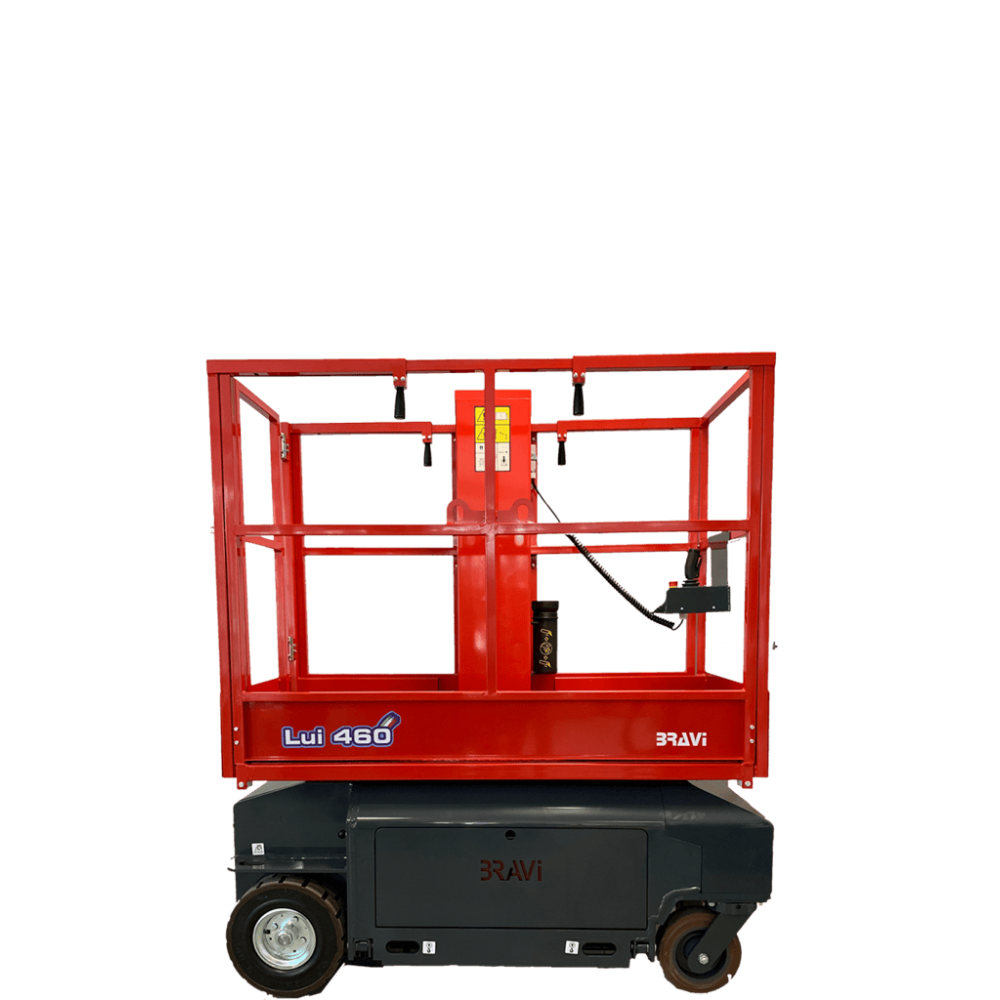

Battery-powered self-propelled platform LUI 460
Maximum working height with operator 6.65 m
Scroll down for more details or ask for more information using the "Ask for more" button
Battery-powered self-propelled platform LUI 460
Maximum working height with operator 6.65 m
Scroll down for more details or ask for more information using the "Ask for more" button
LUI 460: The Innovative Mobile Platform for Working at Heights
The LUI 460 is a mobile platform that combines the exceptional maneuverability of the Leonardo HD with the ability to work at greater heights. This innovative product offers a unique solution for working at heights.
Main Features
• Working height: 6.6 meters
• Steel frame: Ensures maximum protection of components
• LCD control panel: Displays vehicle status, operating time, and battery level
• Capacity: 280 kg
• Compact dimensions: 1659x760x1850 mm for superior maneuverability
• Slope overcoming: Up to 35% with the platform lowered, ideal for overcoming obstacles such as steps and stairs
Efficient and Versatile
Thanks to the automatic lifting band system, the LUI 460 is easy and quick to load and unload. Its compact dimensions allow the operator to move easily through doors, ramps, and tight spaces. With a weight of 1250 kg, it can be loaded onto small vans, making transport fast and economical.
Safe
The LUI 460 moves quickly (3 km/h lowered and 0.6 km/h raised), optimizing time and improving operator comfort. It allows you to lift tools and materials to the desired height without having to constantly reposition, eliminating the risks of tripping and falling and the dangers associated with manual handling of heavy loads.
Durable
Simple, easy to use, and convenient, the LUI 460 is the result of 20 years of continuous technical improvements. Apart from checking the water level in the batteries, it requires no routine maintenance, ensuring low operating costs. It is also possible to completely eliminate battery maintenance by choosing the 100 Ah 12V AGM battery option, available for other models as well.
METRIC | US (ANSI compliant) | |
A – Maximum platform height | 4620 mm | 15 ft 2 in |
B – Working height | 6620 mm | 21 ft 8 in |
C – Platform length (max. extension) | 2376 mm | 7 ft 9.5 in |
D – Base width | 760 mm | 29 in |
E – Base length | 1659 mm | 65 in |
F – Height (platform lowered) | 1850 mm | 72 in |
G – Platform length | 1560 mm | 61 in |
H – Platform width | 680 mm | 26 in |
I – Entry step height | 340 mm | 13.4 in |
Ground clearance | 100 mm | 4 in |
Platform capacity | 280 kg | 617 lbs |
Machine weight (CE) | 1250 kg | 2755 lbs |
Number of occupants (CE) | 2 | 2 |
Travel speed – Platform lowered | 3 km/h | 1.9 mph |
Travel speed – Platform raised | 0.6 km/h | 0.35 mph |
Inside turning radius | ZERO | ZERO |
Outside turning radius | 1700 mm | 67 in |
Maximum incline | 35% | 35% |
Power supply | 110/220 V AC 24V DC | 110/220 V AC 24V DC |
Batteries | n° 4-6 V 245AH@20h | n° 4-6 V 245AH@20h |
